VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Weston, FL | Sightline Windows & Doors Weston

The VLX 100 Swing / Entry Door is a modern aluminum single entry door built around a minimalist frame and multi-point locking system. Homeowners across Weston choose it for clean sightlines, reliable security, and the kind of understated presence that works with everything from contemporary new builds in Windmill Ranch to updated ranch homes near Tequesta Trace. At Sightline Windows & Doors Weston, we’re an authorized ViewLux installation partner, which means your door arrives factory-specified and we install it to the exact standards that keep your warranty intact. We’ve measured, ordered, and fitted these doors throughout Weston since 2018. If you’re weighing a front entry replacement or specifying doors for a renovation in Weston, call us at (754) 812-9260 to schedule a free on-site measurement and written quote.

Call (754) 812-9260

Product Overview - VLX 100 Swing / Entry Door

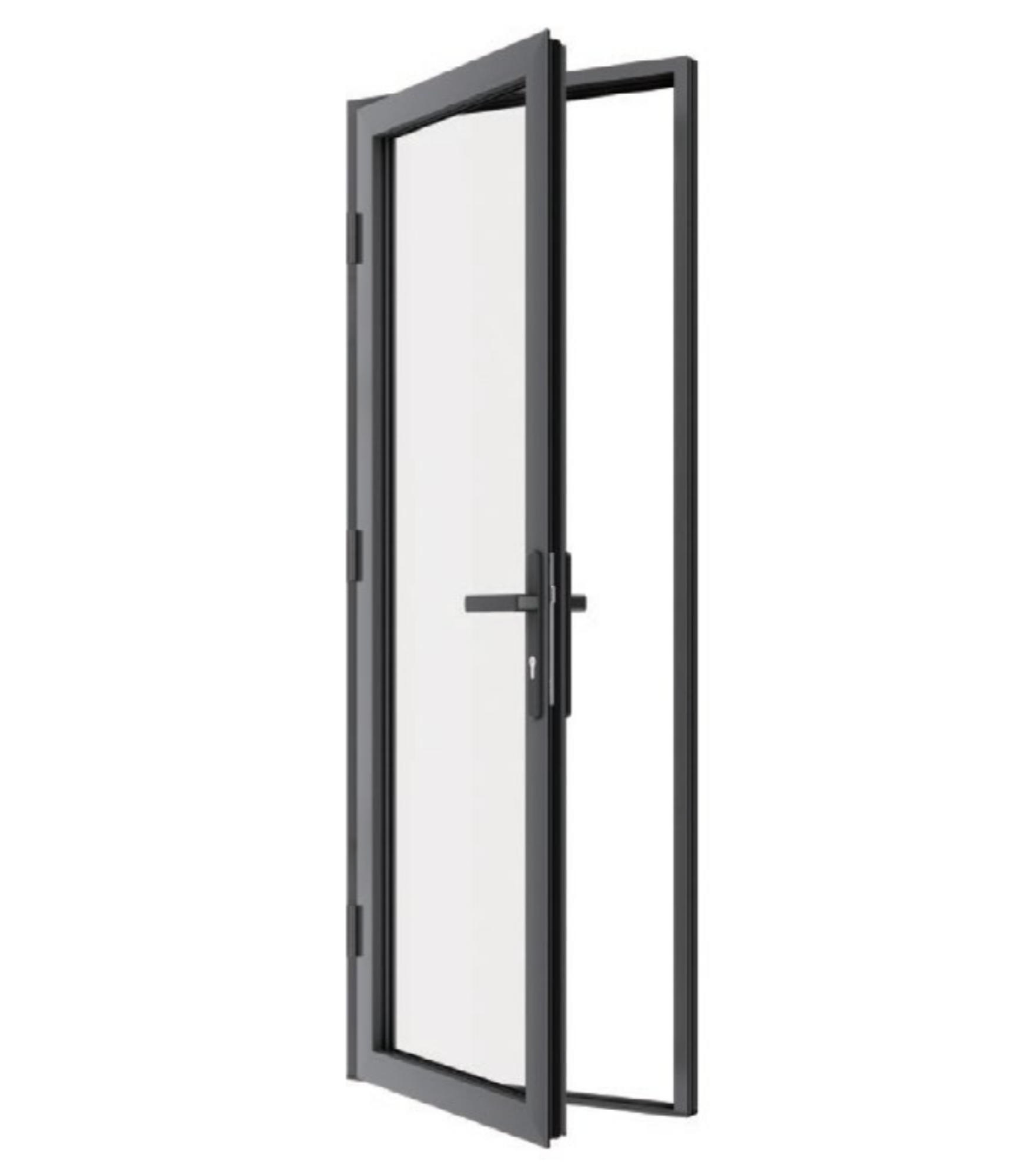

The VLX 100 is a modern aluminum swing door - single entry with minimalist frame and multi-point locking - designed for homeowners and builders who want the visual lightness of a narrow profile without giving up structural integrity or security.

Where does this door fit? Anywhere you want the entry to read as opening rather than obstruction. The 2.56-inch profile width keeps the frame slim, so glass dominates the view. In Weston’s newer construction, that translates to entries that feel connected to the courtyard, pool deck, or front landscape. In older homes getting refreshed, it modernizes without demanding a full architectural overhaul.

Buyers choose this series for three reasons. First, the aluminum construction shrugs off South Florida humidity and salt air that warp or rot lesser materials. Second, the multi-point locking system engages at several points along the frame, not just at the handle, which matters for both security and long-term seal performance. Third, the 0.098-inch wall thickness gives the door heft and dimensional stability - it doesn’t flex when slammed, and it holds its alignment through years of thermal cycling.

ViewLux manufactures the VLX 100 to tight tolerances. We install it to match. That pairing is what separates a door that looks good on day one from one that still operates smoothly a decade later in Weston’s heat and afternoon storms.

Technical Specifications

The 48-inch maximum span suits most single-family entries in Weston without requiring sidelights or transoms, though we can discuss custom arrangements if your opening demands it. The multi-point lock ships factory-installed to ensure alignment with the strike points - field retrofitting locks on a precision aluminum frame is a recipe for callbacks.

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated energy performance means the numbers are third-party verified, not marketing claims. In Weston, where summer attic temperatures regularly exceed 140°F and radiant heat pounds east-facing entries, that thermal break keeps conditioned air inside and your AC load manageable.

Acoustic Performance
The frame’s continuous seal design, paired with proper glass selection, delivers measurable sound control. For homes near I-75, the Sawgrass Expressway, or flight paths into Fort Lauderdale-Hollywood International, we specify laminated glass to dampen low-frequency rumble and traffic drone.

Airtightness & Weather Seal
Compression seals at the jamb and head, plus a sweep at the sill, create positive closure against wind-driven infiltration. During our post-install blower-door verification in Weston homes, we consistently see minimal leakage at the entry - the result of level framing and proper seal compression, not just good gasket material.

Waterproofing
AAMA 812 low-expansion foam sealant fills perimeter joints between frame and rough opening, creating a monolithic air and water barrier. We apply it after level/plumb/square verification but before interior trim, so every gap is addressed. In Weston’s tropical downpours, that detail matters more than any surface coating.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements, including the pressures specified in Broward County’s High Velocity Hurricane Zone. The 0.098-inch wall thickness and reinforced corner construction resist racking under sustained pressure. For Weston homes in flood-prone or exposed locations, we recommend the impact-resistant laminated glass option.

Security & Hardware

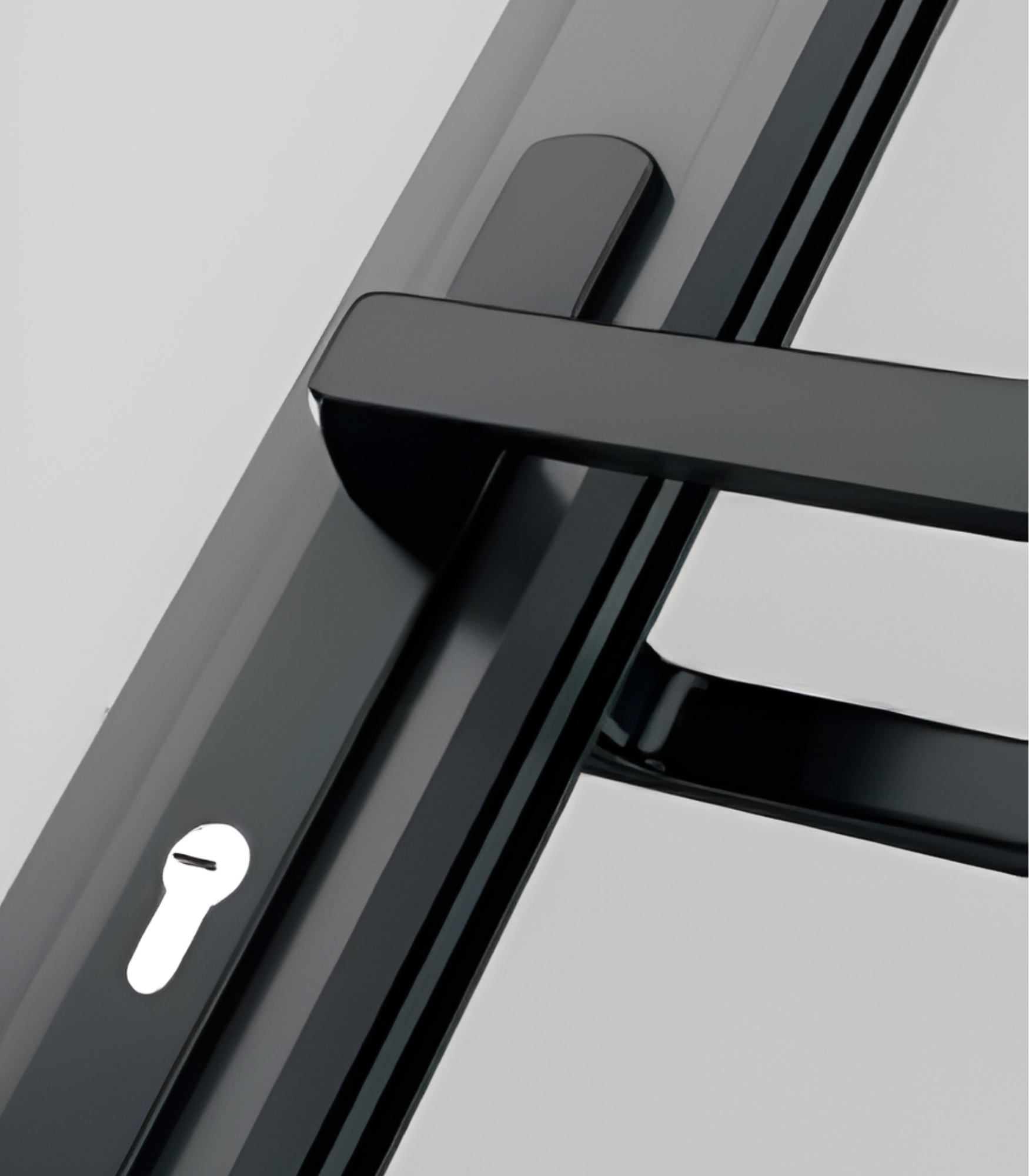

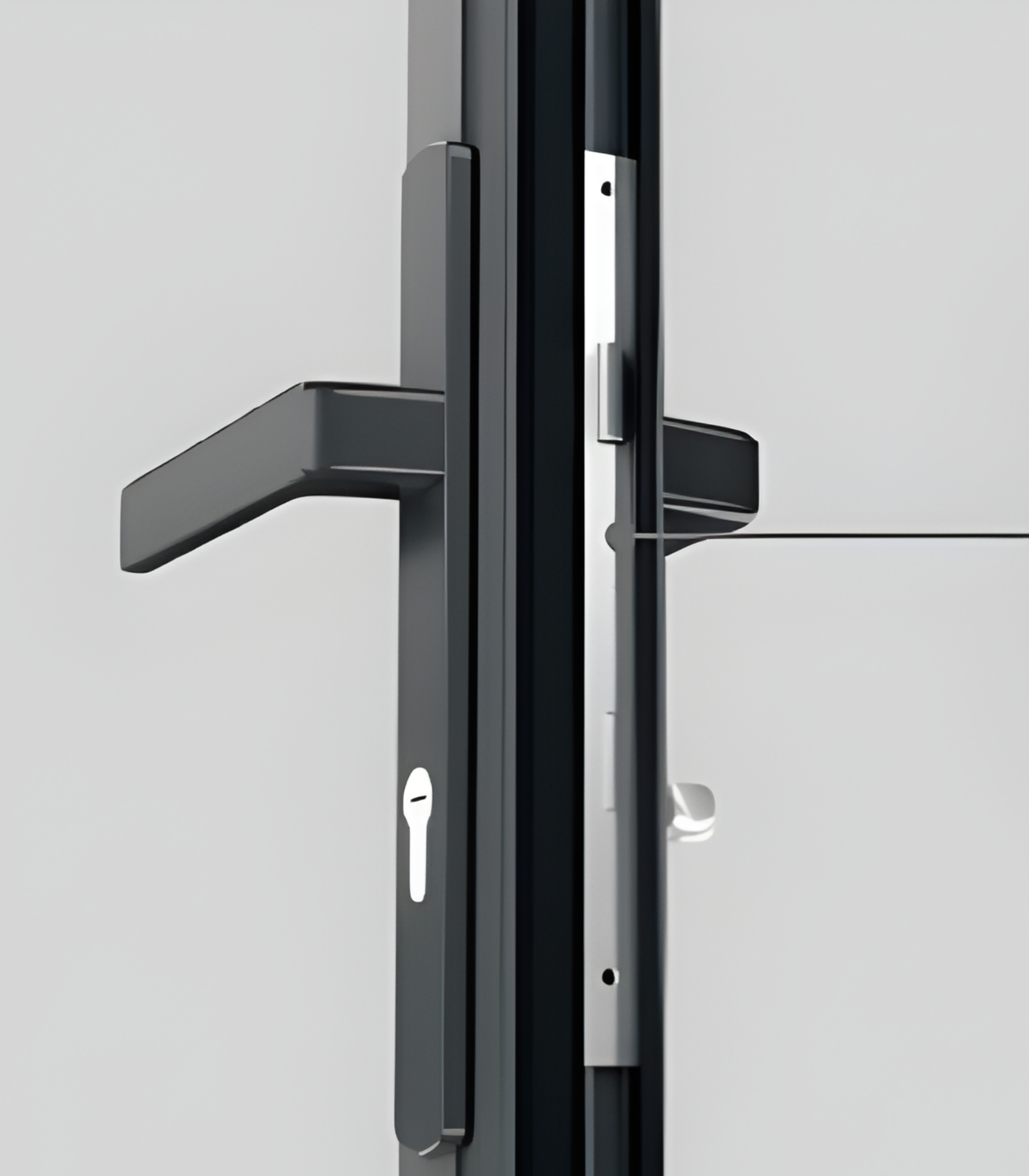

The multi-point locking system engages at the handle, deadbolt, and additional points along the frame edge. A single upward handle motion throws all bolts simultaneously. The hardware is finished to match your selected frame color, and we adjust strike alignment during installation so engagement is crisp, not forced.

Color & Glass Options

Six finishes ship from ViewLux for the VLX 100, and each reads differently against Weston’s typical stucco, stone, and painted exteriors.

Premium Black dominates contemporary installs in Weston. It frames glass like a photograph and pairs cleanly with black window frames for a unified elevation. Pure White suits traditional homes, especially where trim is already white and you want the door to recede visually. Anodized Silver carries an industrial honesty - it shows the aluminum for what it is, and it ages with a soft patina rather than chalking.

Bronze warms up north-facing entries that can read cold, and it complements the terracotta roof tiles common in older Weston subdivisions. Champagne is subtle, slightly warm, less assertive than silver - ideal when you want metal but not flash. Teak Wood gives you the grain pattern and warmth of timber with aluminum’s immunity to rot and termites. We’ve installed it on several Weston homes where the HOA requires wood appearance but the homeowner wants zero maintenance.

Glass selection depends on privacy, solar control, and safety priorities. Clear maximizes daylight and views. Frosted and Obscure diffuse light for bathrooms, side entries, or any door facing a neighbor’s window line. Low-E coatings reject infrared heat without darkening the glass - we recommend it for west-facing doors in Weston that take direct afternoon sun. Tempered meets safety code for entries and breaks into small granules rather than shards. Laminated adds the impact resistance required for hurricane protection and provides the best acoustic damping.

The retractable screen option stores in a housing at the jamb when not in use. For Weston homes where insects are seasonal rather than constant, it’s a cleaner look than a fixed screen door.

Installation by Sightline Windows & Doors Weston in Weston

We install every VLX 100 to AAMA 2400/2410 standards, which govern how fenestration integrates with the wall assembly for water management, air sealing, and structural attachment. This isn’t boilerplate language. Improper installation voids the ViewLux manufacturer warranty, full stop. We’ve seen doors fail in Weston - not because the product was defective, but because the frame was racked during installation, the sill wasn’t bedded correctly, or the perimeter foam was skipped to save twenty minutes.

Our process starts with a pre-install inspection of the rough opening. We check width, height, square, and level. In Weston, where concrete block construction is standard, openings aren’t always perfectly true. We shim and adjust before the door ever leaves the truck. The frame gets set plumb and square, fastened through the jamb into structural framing (not just trim), and checked with a laser level before any sealant touches the opening.

AAMA 812 low-expansion foam sealant fills the perimeter gap between frame and rough opening. We use low-expansion specifically because high-expansion products can distort aluminum frames as they cure. The foam creates both an air seal and a capillary break. After cure, we trim excess and apply compatible sealant at the exterior face for a redundant weather barrier.

Final steps include operational testing - swing, latch, lock, sweep contact - and a water test with a calibrated spray pattern. We clean the site, protect the finish, and leave you with care instructions and warranty documentation.

Weston’s climate demands this rigor. Summer thunderstorms arrive with horizontal rain. Hurricane season brings pressure cycling that finds every weakness. Our AAMA-standard installation is what makes the VLX 100 perform as designed through all of it.

Frequently Asked Questions - VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?
Lead time typically runs 4-6 weeks from signed approval to delivery, depending on glass and finish selection. Specialty finishes or laminated impact glass can extend this slightly. We keep you updated at fabrication milestones, and we never start your clock until you’ve approved the final shop drawings. Call (754) 812-9260 to check current production schedules and reserve your slot.

Does the VLX 100 qualify for energy tax credits?
The NFRC-rated thermal performance and Low-E glass options may contribute to whole-home energy efficiency improvements that qualify for federal tax credits under current IRS guidance. We provide certified product performance data for your tax preparer, but we don’t render tax advice. The credit depends on your total project scope and current year regulations. Call (754) 812-9260 and we’ll share the performance documentation you need.

What warranty comes with the Swing / Entry Door?
ViewLux backs the VLX 100 with a limited lifetime warranty on the frame and finish, with separate coverage periods for hardware and glass components. Our installation carries a 5-year workmanship warranty. Both warranties require professional installation per AAMA standards - DIY or handyman installs void coverage. We register your warranty and provide all documentation at project closeout.

Can I customize the size?
The standard VLX 100 accommodates openings up to 48 inches wide in a single panel. For wider entries, we can design multi-panel configurations or pair the door with fixed sidelights using matching ViewLux profiles. We measure your existing opening during our free estimate and specify the exact configuration that fits without awkward infill or compromised structure. Call (754) 812-9260 to schedule that measurement.

How do I maintain aluminum frames in Weston’s climate?
Rinse frames quarterly with fresh water to remove salt and mineral deposits, especially if you’re near the Everglades or any canal system with brackish water. Wash annually with mild soap and a soft brush. Avoid abrasive cleaners or solvents that damage anodized or painted finishes. Lubricate the multi-point lock mechanism yearly with a dry Teflon spray. The retractable screen, if selected, should be brushed free of debris and retracted during storms to prevent wind damage.

Get a Quote - VLX 100 Swing / Entry Door in Weston

We’re ready to measure your opening, talk through glass and finish options, and give you a written, line-item quote with no pressure and no surprise add-ons. Every VLX 100 we install in Weston is ordered to your exact specifications and fitted by our own crew, not subcontractors. Call (754) 812-9260 or reach out through our site to schedule your free on-site measurement and start your project.

Written by the team at Sightline Windows & Doors Weston, serving Weston, FL as an authorized ViewLux installation partner.
